AR Microscopes
SZX-AR1 Microscope

Augmented Reality Microscope System.

Follow directions, read notes, or watch videos without removing your eyes from the eyepieces.

Contact Us
Simplify Complex Microscope-Based Manufacturing Tasks

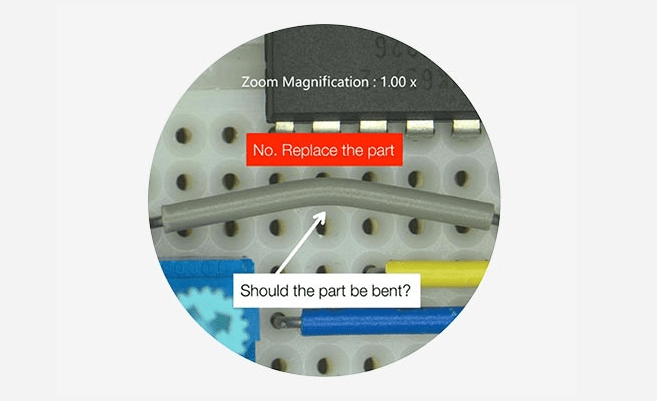

Overlay text and digital images over your microscope's field of view, making it easy to follow directions, read notes, and even watch videos from your eyepiece


Take a photo of the OK product and display it into the SOP, overlaying the transparent image allows for the determination of pass/fail comparison

Faster, More Efficient Medical Device Manufacturing

AR1 microscope module can help assemblers complete their work with fewer mistakes with the ability to project helpful material in the microscope's field of view, including:

  • Images
  • Videos
  • Digital reticle
  • Zoom-linked measurement gauge
  • Notes


This projection technology can reduce the chance of memorization errors and enable the operator to remain more comfortable while they're working, since they can stay focused on their task instead of repeatedly having to look away.

Train New Manufacturing Employees Fast

The AR1 system makes your training more efficient and flexible.

  • An instructor can teach a new employee about each step of the assembly process and show how components should look when they're properly assembled
  • A trainee can receive training while they keep their eyes on the eyepieces, enabling them to stay focused
    Keep Your Manufacturing Line Moving

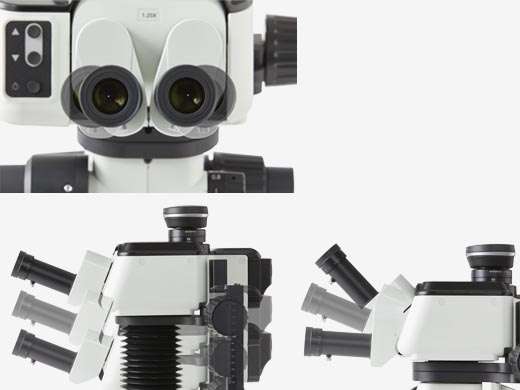

    Evident offers a variety of ergonomic components for stereo microscopes that enable you to remain comfortable while you work. When the AR1 unit’s ergonomic tilting trinocular is combined with an Evident extendable eyepoint adjuster, you can maintain a comfortable, natural posture.

    Training without Travel

    If trainers need to travel to different locations, this adds time and cost to the process. The AR1 system can eliminate travel expenses, saving time and money.

    • Trainers can work remotely without having to travel
    • Use video recordings to train new employees rather than a live trainer
    Stay Comfortable while Working
    Evident offers a variety of ergonomic components for stereo microscopes that enable you to remain comfortable while you work. When the AR1 unit’s ergonomic tilting trinocular is combined with an Evident extendable eyepoint adjuster, you can maintain a comfortable, natural posture.
    Compatible with Existing Stereo Microscopes

    SZX7 . SZX10 . SZX16

    Minimal Effort and Cost to Onboard



    The AR1 system easily attaches to most SZX stereo microscopes. Replace the tilting trinocular, and the SZX-AR1 module mounts directly to the system.

    Hardware

    AR tilting trinocular tube SZX2-ARTTR

    Angle of observation tube: 5 to 45 degrees

    Interpupillary distance adjustment range: 57 to 80 mm

    Equipped with eyepiece clamping knob

    Light-path switching mechanism: none

    Eyepiece magnification: 1.25X; camera magnification: 1X

    Functions of buttons on the front panel: AR image brightness adjustment (7 levels) and AR image ON/OFF

    Input connectors: HDMI x 1, USB 2.0 (Type-C) x 1, DC jack x 1

    Drive voltage: AC 100–240 V (AC adaptor)

    Maximum power consumption: 10 W
    Compatible stereo microscopes

    SZX‒ZB7, SZX2‒ZB10, SZX2‒ZB16
    Zoom magnification sensor

    Main Functions:

    (a) Set the zoom magnification (at click positions only)

    (b) Move slides created on the software forward and backward

    Output connector: USB 2.0 Type-C
    Operating environment

    Ambient temperature: 10 °C to 35 °C (50 °F to 95 °F)

    Relative humidity: 20 to 85%

    Supply voltage fluctuation: ±10%

    Pollution degree: 2 (in accordance with IEC60664-1)

    Installation/overvoltage category: II (in accordance with IEC60664-1)

    Stand tilt: ±3° or less
    Conditions for safety standards

    Indoor use

    Altitude: max. 2000 meters (6562 ft)

    Temperature: 5 °C to 40 °C (41 °F to 104 °F)

    Relative humidity: 20 to 80% (31 °C (87.8 °F) or less) (without condensation)

    If over 31 °C (87.8 °F), the relative humidity in the operating environment must be decreased linearly to 70% at 34 °C (93.2 °F), 60% at 37 °C (98.6 °F), and 50% at 40 °C (104 °F)

    Software

    Camera control function

    Exposure control: switching between auto and manual

    ISO sensitivity adjustment: ISO100, 200, 400

    White balance adjustment function: equipped (one-touch adjustment)
    Acquisition function

    Snapshot acquisition

    File saving formats: BMP, JPEG, PNG

    Resolution: DP23: 3088 × 2076

    DP28 :4104 × 2174

    The camera image can be saved with the AR image simultaneously


    Recording

    File saving formats: mp4, mov; Video codec: H264

    Audio format: MP3; Audio codec: mp3

    Resolution: DP23: 1920 × 1080 (camera image range: 1600 × 1080)

    DP28: 1920 × 1080 (camera image range: 1920 × 1080)

    Video cannot be recorded out of the camera image range

    The camera image can be saved with the AR image simultaneously

    *The recording time is approximately one hour
    Barcode function

    The SZX-AR1 software can generate a QR code linked to the procedure.

    The QR code can be scanned with a barcode reader to recall the procedure in the eyepiece field of view.

    Compatible barcode reader

    COM communication is available.

    A QR code can be loaded

    Output barcode: QR code
    Software language

    English, Japanese, Chinese, German, Spanish, Portuguese, and French



    Specification are subject to change without notice or obligation on the part of the manufacturer
