Stereo Microscopes
SZX16

Research Stereo Microscope

Contact Us
Advanced Stereo with Wide Zoom Ratio
The versatile SZX16 microscope is designed for very demanding applications with the ability to resolve 900 line pair/mm. Utilize the full zoom range (0.7x–11.5x) with our dual turret. The extendable eyepoint adjuster provides comfortable posture for users of different heights.
Outstanding Optical Performance
SZX16's optics, which include observation tubes, zoom body, and objectives are fully apochromatic to reduce chromatic blur over the entire magnification range. The SDF (Super Depth of Focus) objectives can deliver clear and high-contrast images of virtually any specimen. The maximum NA of 0.3 produces a resolution of 900 linepairs per millimeter allowing clear visualization of fine microscopic cell and cell component structures. Such amazing resolution and peerless magnification makes work more efficient, more precise and reveals much more information from samples.

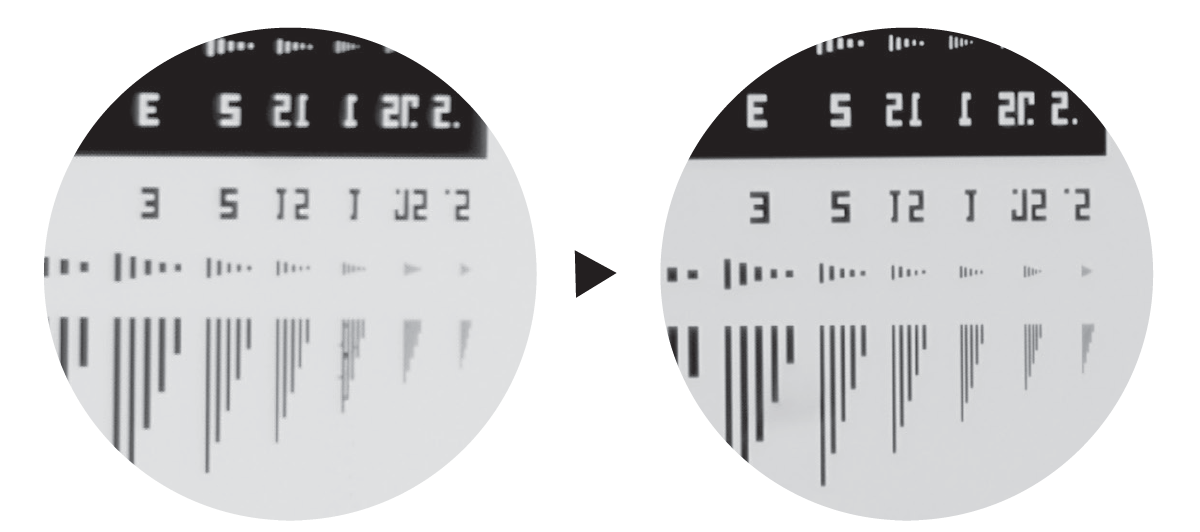

Image: Coventional Model vs SZX16 (with SDFPLAPO2XPFC)
Illuminations
Lightings that reveal your object of interest

Interlock Dual light Guide

4 Segment Ring LED illumination

Coaxial Illumination

Modular System
Building your microscope

Standard Stand

Large Stand

Universal Stand (Heavy Duty)

Lenses

Upgradeable magnification

Ergonomic Instrument

Natural Posture, Reduced Stress, and Increased Productivity


Ergonomic long tilting trinocular

Optimized work position by bringing the microscope closer to the user

Ergonomic Height Adjuster

Reduce stress with the most comfortable position for each user, increasing work efficiency.

Convergence Angle in Tube Relieves Eyestrain

Olympus research established a correlation between stereo microscope optical systems and eyestrain. Certain convergence angles between the left and right optical paths can cause discomfort. The SZX2 series is designed with a convergence angle that completely compensates for each optical path. This solution effectively eliminates eyestrain, even during prolonged observation.

Ergonomic Zoom and Focus Knobs

The position of the zoom knob, size and position of the coarse/fine focusing knob, and the fine focus stroke are designed for easy operation. The enhanced fine focus stroke results in easy and precise focusing.

Research Stereomicroscope System SZX16 Specifications
Optical System Galilean Optical System
Total Magnification 2.1x-690x*1
Zoom Body Zoom Ratio 16.4 (0.7x-11.5x)
AS Built-in
Observation Tube Binocular/Trinocular/Tilting Trinocular Observation Tube
Extendable Eyepoint Adjuster SZX2-EEPA
Focus Focusing Unit/Coarse Fine Focusing Unit/Heavy-duty Coarse Fine Focusing Unit/Motorized Focusing Unit
Objective Lens Magnification Type N.A. W.D. (mm) Total Magnification *2 *3 Field Diameter of View (mm)*2 *3
0.3x Plan SemiApochromat 0.045 141 2.1x - 34.5x Ø104.8 - Ø6.4
0.5x Plan Apochromat 0.075 70.5 3.5x - 57.5x Ø62.9 - Ø3.8
0.8x Plan Apochromat 0.12 81 5.6x - 92x Ø39.3 - Ø2.4
1x Plan Apochromat 0.15 60 7x - 115x Ø31.4 - Ø1.9
1.6x Plan Apochromat 0.24 30 11.2x - 184x Ø19.6 - Ø1.2
2x Plan Apochromat 0.3 20 14x - 230x Ø15.7 - Ø1
Dimensions (W x D x H) 285 mm x 335 mm x 403 mm
Weight 7 kg (in Standard Configularion)
Remark *1 total magnification range possible by combining an objective lens and eyepiece
*2 in the case of using eyepiece 10x
*3 SZX2-LTTR: intermediate magnification is 1.25X, SZX2-ILLC16: intermediate magnification is 1.5X
Specification are subject to change without notice or obligation on the part of the manufacturer
