Stereo Microscopes
SZX7

Stereo Microscope

Contact Us
Comfort and Precision

Work Comfortably and Productively

The SZX7 stereo microscope features a 7:1 zoom ratio, built-in electrostatic discharge protection, and uses an advanced Galilean optical system for brilliant, highly resolved images. Ergonomic features include easily accessible microscope controls and adjustable eye tubes for comfortable viewing at an affordable price.

Optical Excellence

The Galilean Optical System (0.8x -5.6x zoom range) in combination with the improved coatings used in our distortion free objective lens series with their large numerical apertures provide the optimal image for any sample at any appropriate magnification.


Illuminations
Lightings that reveal your object of interest

Interlock Dual light Guide

External Ring LED illumination

Coaxial Illumination

Built-in Reflected and transmitted LED

Modular System
Building your microscope

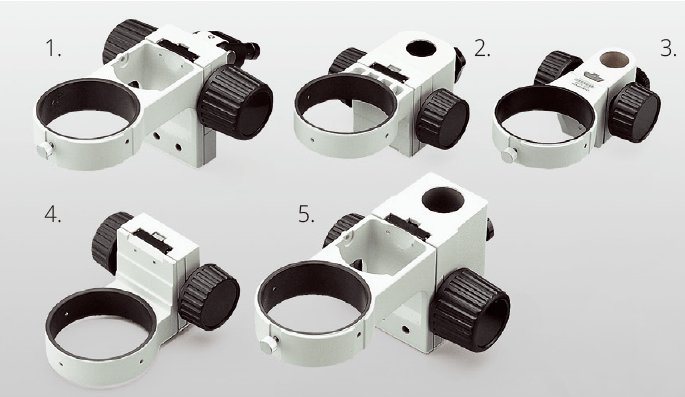

Focus Arms

1. B & L style bonder arm / SZ2-STB1 2. Bonder arm / SZ2-STB2 3. Bonder arm / SZ2-STB3
4. Prober arm / SZ2-STP  5. Arm for SZX stand /SZ2-STS

Universal Stand

Table Clamp or Table Top

Universal Stand

Heavy Duty stand

Lenses

Upgradeable magnification

Ergonomic Instrument
Natural Posture, Reduced Stress, and Increased Productivity

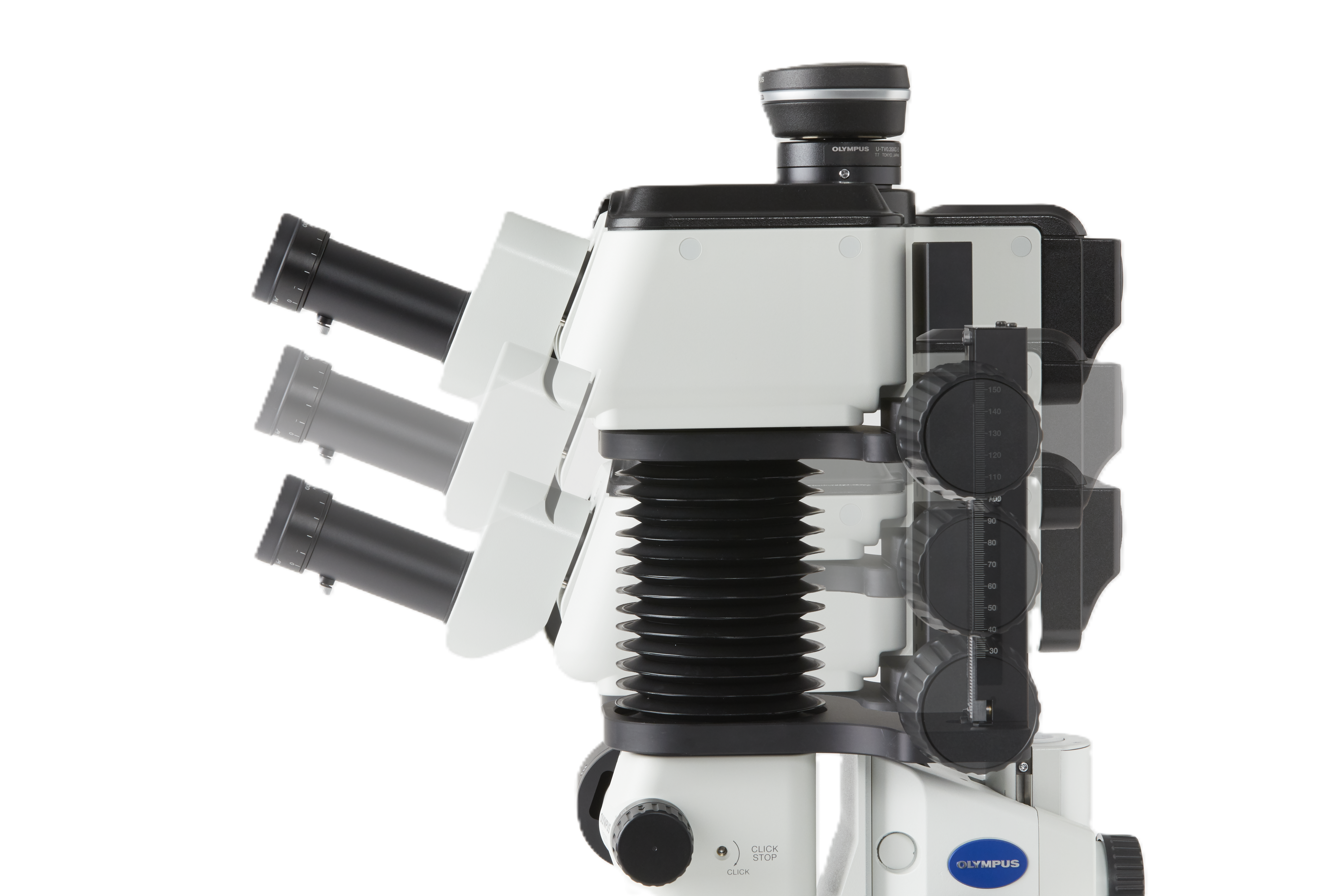

Ergonomic long tilting trinocular

Optimized work position by bringing the microscope closer to the user

Ergonomic Height Adjuster

Reduce stress with the most comfortable position for each user, increasing work efficiency.

Convenient Front-access Operation

Frequently used knobs and switches are easily accessible to maximize comfort and reduce back strain.

Precise Recall of Specific Magnification Settings
Integrated click-stop mechanism provides quick and easy access to this important function.
Eyepieces Reduces Fatigue and Exclude Dust
Pupillary aberration control mechanism whereby the image remains visible even if the operator’s eyes move. Lessens operator fatigue during long observations. Unique eyepiece mounting design excludes dust particles ensuring clear images and an ergonomic eyepiece position.
Stereomicroscope System SZX7 Specifications
Optical System Galilean Optical System
Total Magnification 4.0x-336x*1
Zoom Body Zoom Ratio 7 (0.8x-5.6x)
AS Option
Observation Tube Binocular/Trinocular/Tilting Trinocular Observation Tube
Extendable Eyepoint Adjuster SZX2-EEPA
Focus Stand
Objective Lens Magnification Type N.A. W.D. (mm) Total Magnification *2 *3 Field Diameter of View (mm)*2 *3
0.5x Plan Achromat 0.05 171 4x-28x Ø55-Ø7.9
0.75x Plan Achromat 0.075 116 6x-42x Ø36.7-Ø5.2
1x Plan Apochromat 0.1 81 8x-56x Ø27.5-Ø3.9
Achromat 0.1 90 8x-56x Ø27.5-Ø3.9
1.25x Plan Apochromat 0.125 60 10x-70x Ø22-Ø3.1
Achromat 0.125 68 10x-70x Ø22-Ø3.1
1.5x Plan Achromat 0.15 45.5 12x-84x Ø18.3-Ø2.6
2x Plan Achromat 0.2 33.5 16x-112x Ø13.8-Ø2.0
Dimensions (W x D x H) 194 mm x 253 mm x 403 mm
Weight 4.5 kg (in Standard Configularion)
Remark *1 total magnification range possible by combining an objective lens and eyepiece
*2 in the case of using eyepiece 10x
*3 SZX2-LTTR: intermediate magnification is 1.25X



Specification are subject to change without notice or obligation on the part of the manufacturer
