Stereo Microscopes

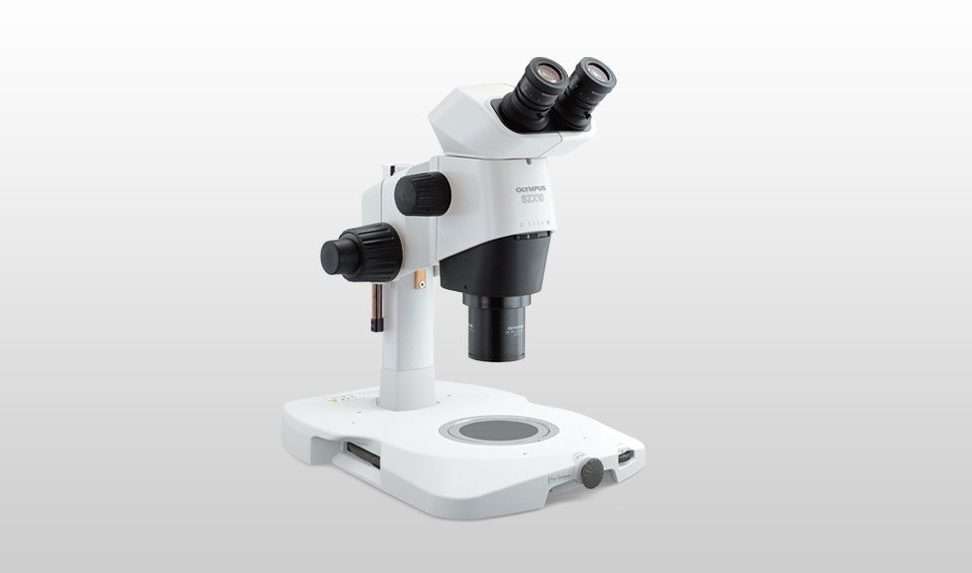

SZX10

Research Stereo Microscope

Contact Us
Flexible Stereo with Wide Zoom Ratio

The SZX10 microscope is the logical choice when large working distance and field size are important. Our lens system is designed so users can observe and document samples in their original, authentic colors without distortion. With ergonomic components, such as longer eye tubes, users maintain a natural posture while using the microscope.



Illuminations
Lightings that reveal your object of interest

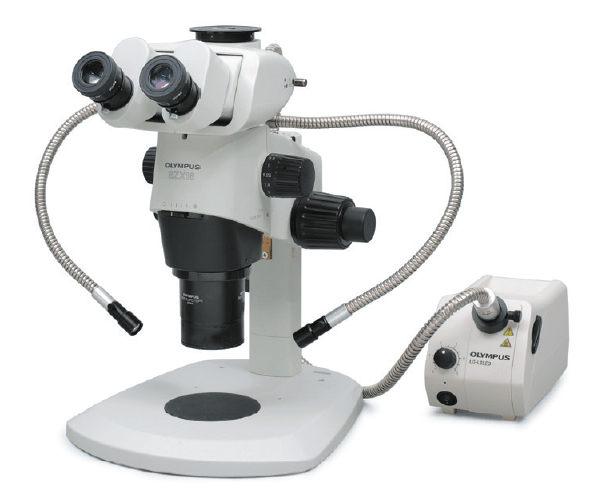

Interlock Dual light Guide

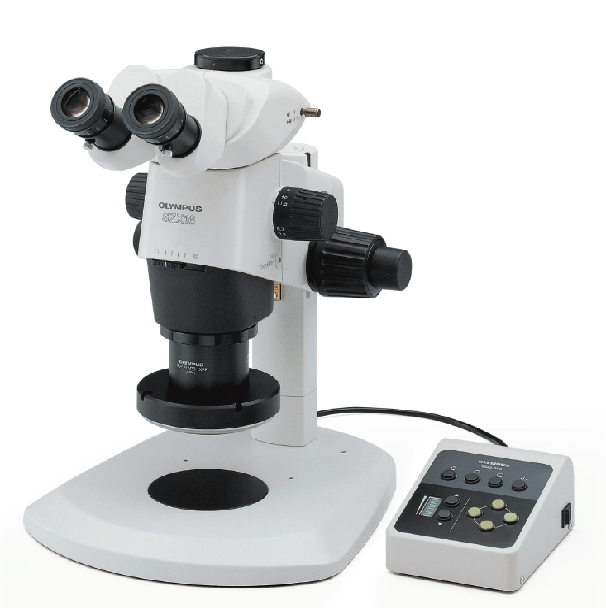

4 Segment Ring LED illumination

Coaxial Illumination

Modular System
Building your microscope

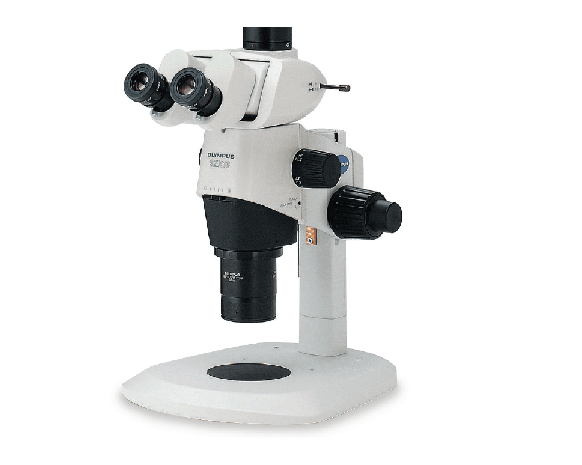

Standard Stand

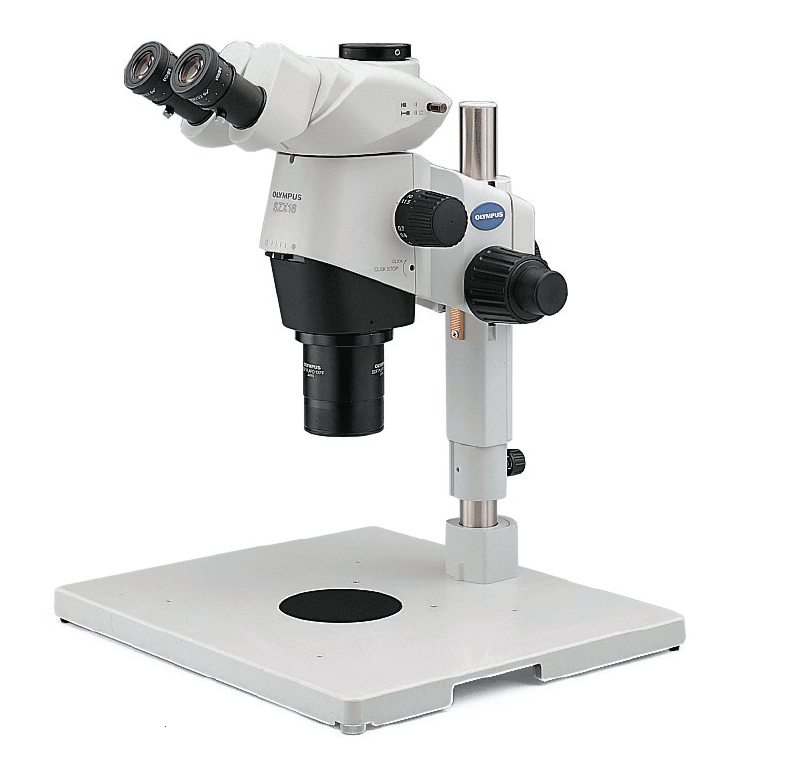

large Stand

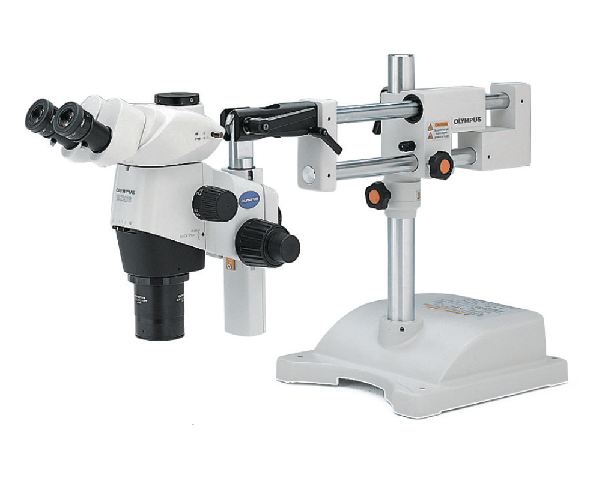

Universal Stand (Heavy Duty)

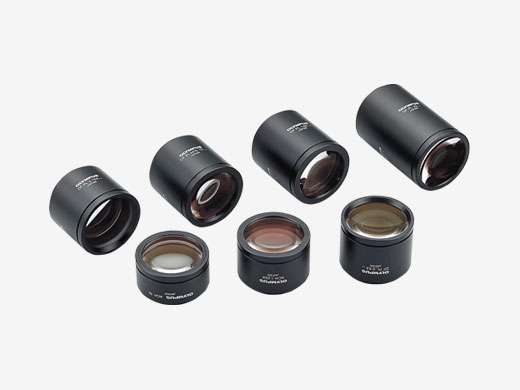

Lenses

Upgradeable magnification

Ergonomic Instrument

Natural Posture, Reduced Stress, and Increased Productivity

Ergonomic long tilting trinocular

Optimized work position by bringing the microscope closer to the user

Ergonomic Height Adjuster

Reduce stress with the most comfortable position for each user, increasing work efficiency.

Control Knobs Capable of Quick Inspection

Integrated 11-position click-stop makes it easy to record and reproduce zoom settings.

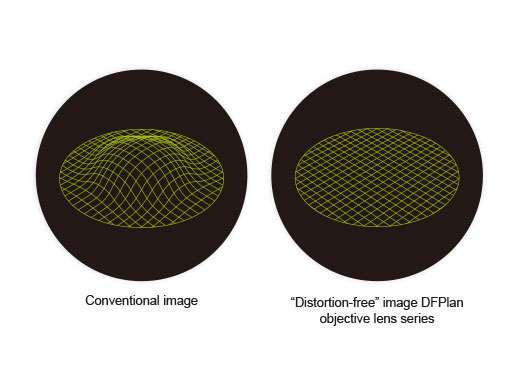

Excellent Optical Performance with Natural View

Designed to provide a natural view of the specimen with excellent stereo and color representation

Research Stereomicroscope System SZX10 Specifications
Optical System Galilean Optical System
Total Magnification 3.15x-378x*1
Zoom Body Zoom Ratio 10 (0.63x-6.3x)
AS Built-in
Observation Tube Binocular/Trinocular/Tilting Trinocular Observation Tube
Extendable Eyepoint Adjuster SZX2-EEPA
Focus Focusing Unit/Coarse Fine Focusing Unit/Heavy-duty Coarse Fine Focusing Unit/Motorized Focusing Unit
Objective Lens Magnification Type N.A. W.D. (mm) Total Magnification *2 *3 Field Diameter of View (mm)*2 *3
0.5x Plan Achromat 0.05 171 3.2x-31.5x Ø69.8-Ø7
0.75x Plan Achromat 0.075 116 4.7x-47.3x Ø46.6-Ø4.7
1x Plan Apochromat 0.1 81 6.3x-63x Ø34.9-Ø3.5
Achromat 0.1 90 6.3x-63x Ø34.9-Ø3.5
1.25x Plan Apochromat 0.125 60 7.9x-78.9x Ø27.9-Ø2.8
Achromat 0.125 68 7.9x-78.9x Ø27.9-Ø2.8
1.5x Plan Achromat 0.15 45.5 9.5x-94.5x Ø23.3-Ø2.3
2x Plan Achromat 0.2 33.5 12.6x-126x Ø17.5-Ø1.7
Dimensions (W x D x H) 285 mm x 335 mm x 400 mm
Weight 7 kg (in Standard Configularion)
Remark *1 total magnification range possible by combining an objective lens and eyepiece
*2 in the case of using eyepiece 10x
*3 SZX2-LTTR: intermediate magnification is 1.25X, SZX2-ILLC10: intermediate magnification is 1.5X



Specification are subject to change without notice or obligation on the part of the manufacturer
